Automatic Pouch Packing Machine Pre-made Stand Up Pouch Packaging Equipment
| الـ MOQ: | 1 |
| سعر: | Negotiations |
| العبوة القياسية: | التعبئة والتغليف القياسية الدولية للشحن |
| فترة التسليم: | 30 يوما |
| طريقة الدفع او السداد: | ل / c، / تي تي، ويسترن يونيون |
| القدرة على التوريد: | 300 مجموعات سنويا |
معلومات مفصلة
مكان المنشأ
شنغهاي
اسم العلامة التجارية
Waylead
إصدار الشهادات
/
رقم الموديل
WG-250
سرعة التعبئة:
≦70 كيس/دقيقة
حجم الحقيبة:
الطول: ≦400 مم العرض: 130-260 مم
مادة الفيلم:
الأكياس المسطحة، والأكياس القائمة، والأكياس ذات السحاب، وأكياس الأفلام المركبة، وأنواع أخرى.
مزود الطاقة:
380 فولت
استهلاك الهواء:
5-7 كجم/سم2؛ 0.4 م 3 / دقيقة
نوع الطاقة:
كهربائي
استهلاك الطاقة:
8 كيلوواط
مادة:
الفولاذ المقاوم للصدأ
نطاق التعبئة والتغليف:
حبيبات مسحوق سائل
وصف المنتج

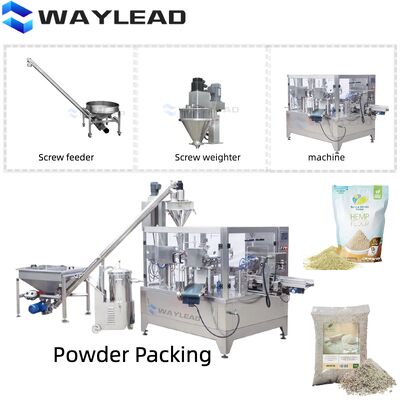

This automatic pre-made pouch packing machine is designed for flexible packaging scenarios, compatible with various pre-formed pouches including stand-up pouches, zipper pouches and spout pouches. It completes the whole process of pouch feeding, date printing, material filling, sealing and finished product output in one fully automatic flow, greatly reducing manual intervention and improving packaging efficiency. The machine supports multi-station modular adjustment, which can quickly switch between different pouch sizes without complicated tool replacement. Equipped with high-sensitivity sensor and fault self-diagnosis system, it can automatically detect empty pouches and missing filling to avoid material waste. Made of food-grade 304 stainless steel, it meets international food hygiene standards. We provide 12-month warranty and on-site debugging service, and it has been widely used in food, daily chemical and other industries in Southeast Asia and Africa.
Technical Specifications
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessitiesParticles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materialsPowders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materialsLiquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergentsSauces
Tomato sauce, peanut butter, jam, chili sauce, bean pasteOther Materials
Various other products suitable for bagging Advantage Features
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
Complete Packaging Machine Range
Shanghai Waylead Intelligent Technology Co.,Ltd. is specialized in turn-key solutions for packaging processing projects and fruit/vegetable processing lines. The company focuses on packaging equipment, robot applications, fruit and vegetable processing equipment, etc., and is committed to the fruit and vegetable processing industry, baking industry, snack food industry, freeze-drying industry, and powder industry. sauce industry, hardware chemical industry and other one-stop professional services.
Our comprehensive packaging solutions include VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
