Zipper Pouch Packing Machine | Reclosable Bag Filler & Sealer for Granules/Powder/Liquid
| الـ MOQ: | 1 |
| سعر: | Negotiations |
| العبوة القياسية: | التعبئة والتغليف القياسية الدولية للشحن |
| فترة التسليم: | 30 يوما |
| طريقة الدفع او السداد: | ل / c، / تي تي، ويسترن يونيون |
| القدرة على التوريد: | 300 مجموعات سنويا |
Upgrade Your Packaging Line with Our Zipper Pouch Packing Machine
Designed for efficiency and convenience, our Zipper Pouch Packing Machine delivers airtight, resealable packaging that modern consumers demand. Whether you pack coffee beans, dried fruit, pet treats, or hardware parts, this automatic system ensures product freshness and shelf appeal.
Why Choose This Machine?
Unlike standard sealers, our unit integrates a dedicated zipper closing device that embeds a press-to-seal zipper into pre-made stand-up pouches. The result? Customers can open and reclose the bag multiple times without spillage or quality loss – directly enhancing your brand value.
Key Technical Features:
PLC & HMI Control: Simple touchscreen operation with memory for 50+ product recipes.
Multi-Material Compatibility: Handles granules (nuts, rice), powders (protein, flour), liquids (oil, sauce), and even sticky products.
Precise Filling System: Servo-driven auger, cup filler, or liquid pump available.
Integrated Zipper Sealing: Ultrasonic or heat sealing technology ensures zipper alignment >99.5% accuracy.
Speed Range: 30–60 bags/min (depending on bag size & product flow).
Cost & Support Advantage
Available from 12,000–35,000 based on filling type and automation level. Every purchase includes free installation guidance, operation video, and 18-month warranty. We also supply trial packaging samples before order.
Applications
Perfect for: coffee roasters, nut packers, pet food brands, and e-commerce sellers needing retail-ready resealable pouches.
Contact us for a custom quote or a live machine demo video.

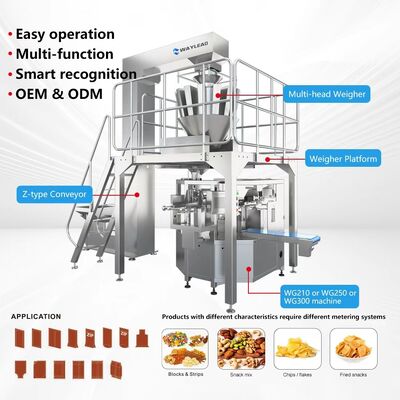

| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
